WebShare UB64 User manual (Version 4.0.0)


5 HELIOS Admin

In addition to the web-based administration (see previous chapter 4 “Administration”), WebShare users and sharepoints can be configured and administered from within HELIOS Admin. This administration service is comprised of two components, the HELIOS Admin server and the HELIOS Admin client.

The HELIOS Admin client is a convenient tool that allows configuring users, groups, volumes and sharepoints, printer queues, etc., and which is supported for various client platforms, due to its Java heritage. For details see the chapter “HELIOS Admin” in the HELIOS Base manual.

In this manual we focus on the WebShare related usage of HELIOS Admin, such as configuring WebShare users and sharepoints.

5.1 General remarks

This chapter describes the use of the application HELIOS Admin to perform WebShare related configuration from any workstation in a convenient and secure way.

In order to use HELIOS Admin, the HELIOS Admin server must already be running on the host you want to configure. The HELIOS Service Controller is configured to start this service automatically when the system is booted.

Other chapters in this manual describe how administrative work, which is required to configure and maintain the WebShare system, can be done directly on the host, e.g. by using “prefvalue” (see “HELIOS utility programs” in the HELIOS Base manual). However, most of these tasks can be carried out much easier using HELIOS Admin from one of the workstations.

HELIOS Admin offers a high degree of convenience to the system administrator. The application allows the host configuration to be represented graphically with lists and windows.

HELIOS Admin accesses and modifies the “Preferences” configuration file. HELIOS Admin and the HELIOS Admin server have built-in safety checks to avoid conflicting or invalid configuration settings.

HELIOS Admin has the additional advantage that almost all changes are immediately effective, without having to restart the affected service.

5.2 WebShare Server Settings

General

The General tab (Fig. 5.1) provides the same general options and preferences that are available in the web-based administration (Fig. 4.3 in 4.1 “Server Preferences”), where they are described.

WebShare Server Settings – <code>General</code> tab

Fig. 5.1: WebShare Server Settings – General tab

Preview

Likewise, preview-related options and preferences in the Preview tab (Fig. 5.2) are also available in the web-based administration (Fig. 4.3). See 4.1 “Server Preferences” for a description.

WebShare Server Settings – <code>Preview</code> tab

Fig. 5.2: WebShare Server Settings – Preview tab

Quickshares

The Quickshares tab (Fig. 5.3) lists all Quickshares that are defined on this server. This information is the same that is available in the lower part of the web-based administration window (Fig. 4.4).

WebShare Server Settings – <code>Quickshares</code> tab

Fig. 5.3: WebShare Server Settings – Quickshares tab

A double-click on an entry opens the “Quickshare:<#>” window (Fig. 5.4). In this window, certain Quickshare information can be modified:

All other fields cannot be changed but their content can be selected and copied to paste into another application, e.g. to send the URL to the e-mail address of the Quickshare user. The options are described in 4.2 “Quickshare Administration”.

Quickshare administration

Fig. 5.4: Quickshare administration

5.3 Sharepoints

The Sharepoints tab shows all HELIOS WebShare sharepoints on the host (Fig. 5.5). The HELIOS Admin server automatically creates this list by inspecting sharepoint-related entries in the “Preferences” file (see 8.5.2 “Sharepoint preference keys”).

hsymInstruction

Choose the Sharepoints tab. If it is not available, activate it in the Lists menu.

HELIOS Admin – <code>Sharepoints</code> tab

Fig. 5.5: HELIOS Admin – Sharepoints tab

hsymInstruction

To open an entry, highlight a sharepoint name in the list and go to File > Open, or just double-click on the entry or press the RETURN key.

Note:

For space reasons, the “Sync List” column is only displayed if at least one sync list is specified.

General

The WebShare sharepoint administration window (Fig. 5.6) in HELIOS Admin provides the same features and options that are already known from the web-based administration described in 4.5 “Sharepoint Administration” (compare Fig. 4.6).

WebShare sharepoint <code>General</code> tab

Fig. 5.6: WebShare sharepoint General tab

Sync List

Switching to the Sync List tab (Fig. 5.7), you may define files or folders in the present sharepoint that should be synchronized with a mobile device via the HELIOS Document Hub solution. See a description of the sync list feature in Sync list (compare Fig. 4.7).

WebShare sharepoint <code>Sync List</code> tab

Fig. 5.7: WebShare sharepoint Sync List tab

By default, the Show Disk Usage checkbox is not activated. If checked, three additional columns become available: “Directories”, “Files”, and “Size” of the synchronized files.

Note:

Activating the Show Disk Usage checkbox may slow down server performance due to the enumeration of directory trees.

Quickshares

The Quickshares tab Fig. 5.8 lists all Quickshares within the selected sharepoint. It contains important parts of the information that is also available in the WebShare “Quickshare Administration” window (compare Fig. 4.4 in 4.2 “Quickshare Administration”).

WebShare sharepoint <code>Quickshares</code> tab

Fig. 5.8: WebShare sharepoint Quickshares tab

hsymInstruction

To open an entry, highlight a Quickshare in the list and go to File > Open, or just double-click on the entry or press RETURN.

5.4 WebShare Users

The WebShare Users tab shows all HELIOS WebShare users on the host (Fig. 5.9). The HELIOS Admin server automatically creates this list by inspecting the “webshare.passwd” file (see 8.1 “User configuration file”).

HELIOS Admin – <code>WebShare Users</code> tab

Fig. 5.9: HELIOS Admin – WebShare Users tab

hsymInstruction

Choose the WebShare Users tab. If it is not available, activate it in the Lists menu.

hsymInstruction

To open an entry, highlight a user name in the list and go to File > Open, or just double-click on the entry or press RETURN.

General

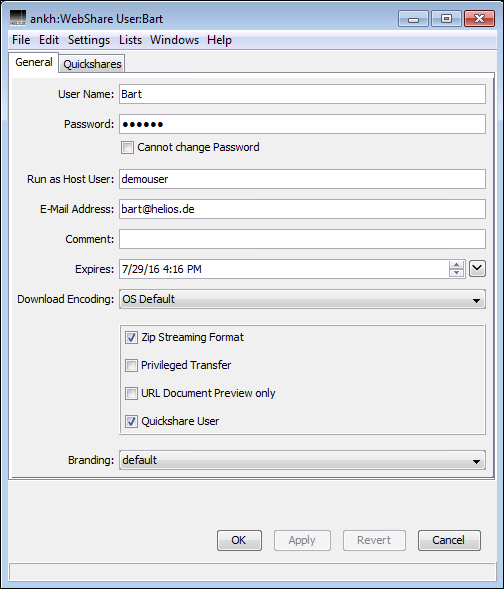

The WebShare user administration window (Fig. 5.10) in HELIOS Admin provides the same features and options that are already known from the web-based administration described in 4.3 “User Administration” (compare Fig. 4.5).

WebShare user <code>General</code> tab

Fig. 5.10: WebShare user General tab

Quickshares

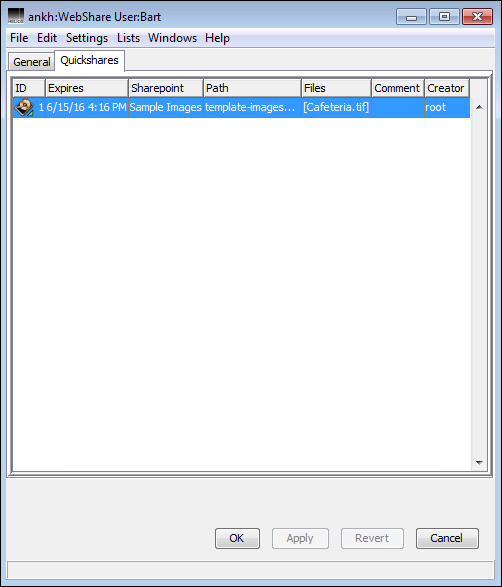

If one or more Quickshares have been assigned to a WebShare user, the additional Quickshares tab becomes available (Fig. 5.11). See a description of the Quickshares feature in 4.2 “Quickshare Administration” (compare Fig. 4.4).

WebShare user <code>Quickshares</code> tab

Fig. 5.11: WebShare user Quickshares tab

5.5 WebShare log file

The WebShare log file contains all details for several WebShare actions, such as login, preview, add files, delete files, etc.

The exact WebShare status codes are detailed in C “Technical notes”.

hsymInstruction

Select WebShare Log Files from the Lists menu and specify the desired day.

Example of a WebShare log file

Fig. 5.12: Example of a WebShare log file

hsymInstruction

Choose Save as... from the File menu to save the WebShare log file as a text file.

Note:

If the filter option is active (see “Filtering log entries” in the HELIOS Base manual section below), only the filtered part of the WebShare log file is saved.

You can then read this information into a word processor for further use. HELIOS Admin gets its information from the files “HELIOSDIR/var/adm/​webshare.acct” (data of “Today”) to “HELIOSDIR/var/adm/webshare.acct.6” (“7 Days Ago”). See C “Technical notes” for more information.
